Specifications:

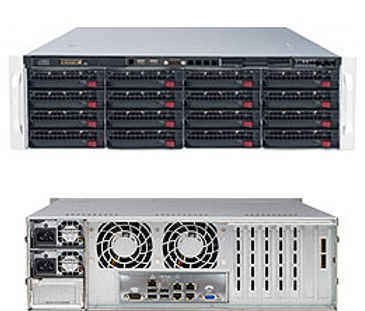

6038R-E1CR16L

FormFactor :

3U

URL           :

Document  :

Key Features


1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600
    v4†/ v3 family; QPI up to 9.6GT/s

2. Up to 2TB† ECC 3DS LRDIMM , up to
    DDR4- 2400†MHz ; 16x DIMM slots

3. 1 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (slot 3 & 4 occupied by controller and JBOD expansion port)

4. Dual 10GBase-T LAN w/ Intel® X540

5. 16x 3.5" Hot-swap SAS3/SATA3 drive bays; 2x 2.5" optional Hot-swap SATA drive bays (rear)

6. SAS3 via Broadcom 3008 controller; IT mode

7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN

8. 2x 80mm hot-swap rear exhaust PWM fans

9. 920W Redundant Power Supplies Platinum Level (94%)

Model         :
